Flir E4 MSX Thermal Imaging Camera

FLIR Systems launches FLIR Ex-Series

Easy to use, point-and-shoot thermal imaging cameras

FLIR Ex-Series cameras are point-and-shoot thermal imaging cameras that give you access to a new dimension in inspection capability. A FLIR Ex-Series camera is an affordable replacement for a spot pyrometer. It provides a thermal image with temperature information on every pixel. The combined image storage of the new MSX®, thermal and visual formats make the cameras incomparably easy to use.

	Outstanding ease-of-use The cameras are extremely easy to understand and operate, designed for entry-level users. The cameras are intuitive and come with a full manual.
	Fully automatic FLIR Ex-Series produce instant, point-and-shoot JPEG thermal imagery with all required temperature data included.
	Focus free The fixed focus-free lens makes using the FLIR Ex-Series a snap.
	Compact and lightweight FLIR Ex-Series weighs only 575g, and is easy to store in a belt pouch.
	Visual camera Visible light camera makes observing and inspecting faster and easier.
	Reporting and analysis software included FLIR Tools software is available for free download for all Ex-Series users.
	Measure temperatures Measures temperatures up to +250°C and detects temperature differences as small as 0.06°C (FLIR E6 / FLIR E8).
	Measurement functions Spotmeter, area with max./min., color alarm; blue below / red above set temperature.*
	Picture-in-Picture (PiP) With the PiP function it is easy to locate areas of interest.*
	Multi Spectral Dynamic Imaging (MSX®) The innovative MSX® feature produces an image more rich in every detail than ever before.
	Multi Spectral Image storage Combined image storage including MSX®, thermal, PiP and visual.

	* Features dependant on camera model, please check technical specifications for more details.

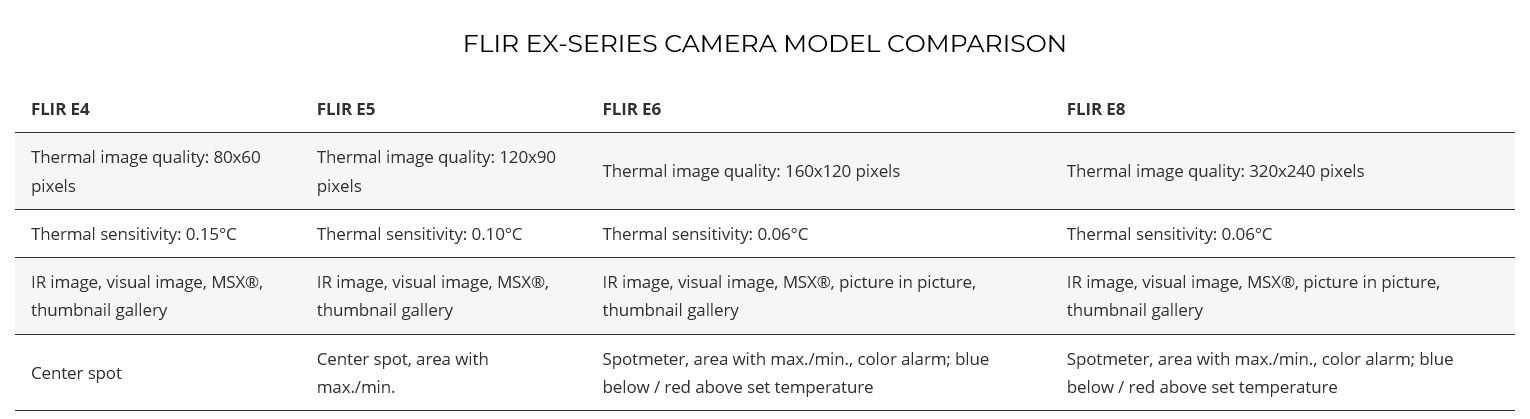

FLIR Ex-Series camera model comparison

FLIR E4	FLIR E5	FLIR E6	FLIR E8
Thermal image quality: 80x60 pixels	Thermal image quality: 120x90 pixels	Thermal image quality: 160x120 pixels	Thermal image quality: 320x240 pixels
Thermal sensitivity: 0.15°C	Thermal sensitivity: 0.10°C	Thermal sensitivity: 0.06°C	Thermal sensitivity: 0.06°C
IR image, visual image, MSX®, thumbnail gallery	IR image, visual image, MSX®, thumbnail gallery	IR image, visual image, MSX®, picture in picture, thumbnail gallery	IR image, visual image, MSX®, picture in picture, thumbnail gallery
Center spot	Center spot, area with max./min.	Spotmeter, area with max./min., color alarm; blue below / red above set temperature	Spotmeter, area with max./min., color alarm; blue below / red above set temperature

A new thermal imaging experience

As a world leader in the design and manufacture of thermal imaging cameras, FLIR Systems has a long tradition of bringing the advantages of thermal imaging to as many users as possible by continuously introducing new, fully featured products at the most affordable prices.

A further example of this is the launch of the new FLIR Ex-Series - feature rich and extremely affordable thermal imaging cameras with prices starting from as low as $1,450+gst.

FLIR Ex-Series thermal imaging cameras are ideal for electrical and mechanical inspections where their ability to detect potential problem areas mean that installations can be quickly and easily inspected and breakdowns avoided. Building inspectors will also rapidly discover the benefits of the FLIR Ex-Series as they are ideal for detecting insulation losses, inspecting under floor heating and many other building related anomalies.

FLIR Ex-Series cameras are easy-to-use thermal imaging cameras that give the user access to a new dimension in inspection capability. An affordable replacement for a spot pyrometer, they provide a thermal image with temperature information on every pixel. A FLIR thermal imaging camera can scan an entire area, never missing a potential problem area, no matter how small it might be.

Outstanding ease-of-use

With a fixed, focus-free lens, FLIR Ex-Series is extremely simple to operate. Designed for entry-level users, and measuring temperatures up to +250°C, they produce instant, ‘point-and-shoot’ JPEG thermal imagery with all required temperature data included.

Visual camera and FLIR patented MSX®

A built-in visual camera makes observing and inspecting faster and easier, as the visual image can be used as a reference against the thermal image. FLIR's patented MSX®-technology provides thermal images of exceptional quality in real time. This results in sharper-looking thermal images, quicker target orientation and clutter-free reports.

Without MSX activated With MSX

E8 Building with no MSX E8 Building with MSX

Different models: lightweight and easy to carry

All FLIR Ex-Series weigh only 575 grams, and are easy to carry in a belt pouch.

Reporting and analysis software included

FLIR Tools software is available for free download by all Ex-Series users. FLIR Tools allows the user to import thermal images to a PC for basic reporting and analysis of findings. Key features of FLIR Tools mean that the user can:

Lay out, move and resize measurement tools on any thermal image
Create PDF image sheets
Add headers, footers and logos to reports
Apply filters when searching for specific thermal images
Those who need more analysing capability can select FLIR Tools+ as an option.

2-10 Year Warranty

About thermal imaging

Thermal imaging is the use of cameras constructed with special sensors that “see” thermal energy emitted from an object. Thermal or infrared energy is light that is not visible to the human eye because its wavelength is too long to be detected. It is the part of the electromagnetic spectrum that we perceive as heat. Infrared allows us to see what our eyes cannot. Thermal imaging cameras produce images of invisible infrared or “heat” radiation. Based on temperature differences between objects, thermal imaging produces a clear image. It is an excellent tool for predictive maintenance, building inspections, research & development and automation applications. It can see in total darkness, in the darkest of nights, through fog, in the far distance and through smoke. It is also used for security and surveillance, maritime, automotive, firefighting and many other applications.

About FLIR Systems

FLIR Systems is the world leader in the design and manufacturing of thermal imaging cameras for a wide variety of applications. It has over 50 years of experience and thousands of thermal imaging cameras currently in use worldwide for industrial applications, building inspections, research & development, security and surveillance, maritime, automotive and other night-vision applications. FLIR Systems has eight manufacturing plants located in the USA (Portland, Boston, Santa Barbara and Bozeman), Stockholm, Sweden, Talinn, Estonia and near Paris, France. It operates offices in Australia, Belgium, Brazil, China, Dubai, France, Germany, Hong Kong, Italy, Japan, Korea, the Netherlands, Russia, Spain, UK and the USA. The company has over 3,200 dedicated infrared specialists, and serves international markets through an international distributor network providing local sales and support functions.
